美迪斯自动人行道，高精度驱动装置与变频技术的完美结合，满足于人行道本身的稳定、高效、节能，让乘客在细节处体会到尊贵与享受。
MATIZ MOVING WALKS have a perfect combination with high-accuracy drive device and VF technology.It meets the need of steadiness,high efficiency and energy-saving,making passengers enjoy the dignity all the way.
- 自动人行道
- 控制系统及设计风格

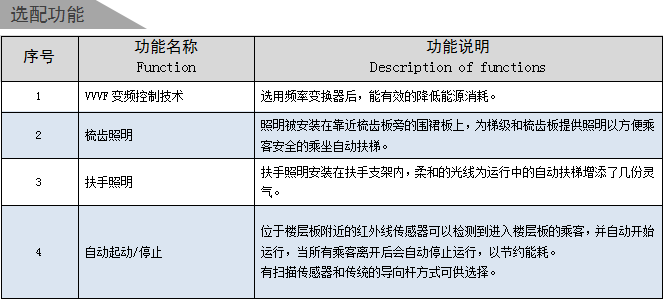

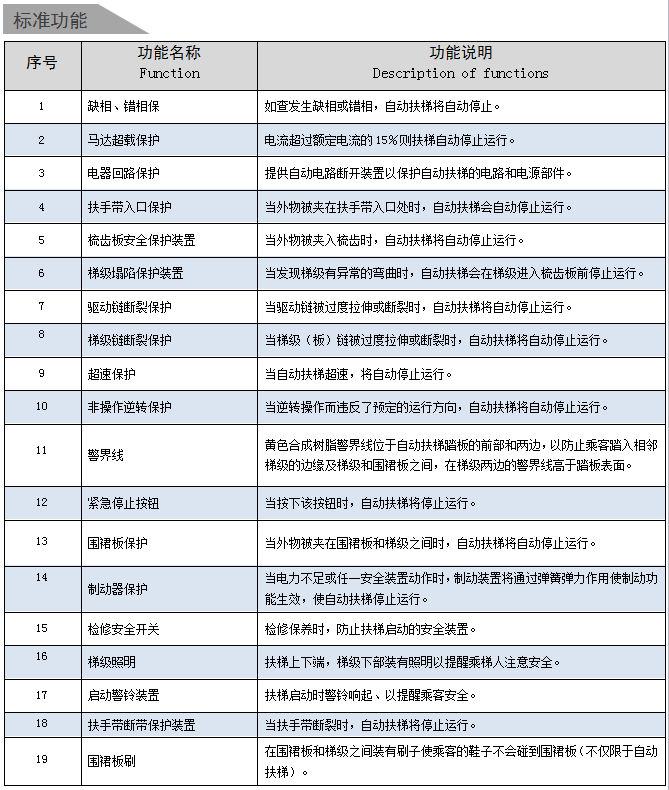

- 标准功能和选配功能

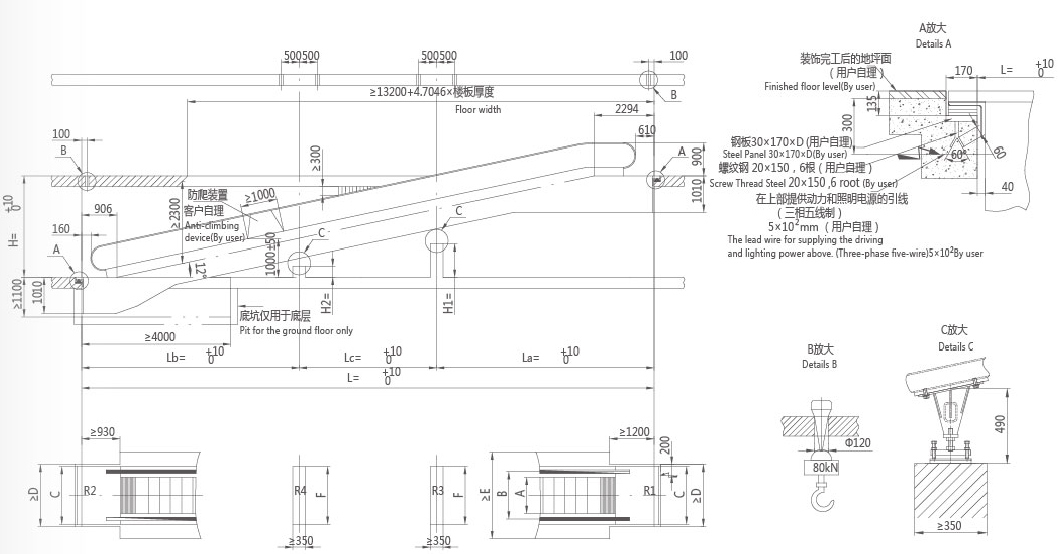

- 土建布局图
MATIZ自动人行道系列
MATIZ moving walk series
先进微机控制系统，全面监控自动人行道运行状况，及时消除隐患，即时救援。
踏板采用鱼腹式短板，无梯级设计，缩减空间跨度的同时固定防滑，安全升级。
上下部链轮安装缓冲装置，有效减小运行时的冲击振动。
多选的扶手带款式、多选的活动盖板花纹、多选的照明方式，为建筑定制风格人行道。
Advanced micro-computer conrol system,overall monitor running states of moving walk,get rid of potential safety hazard and rescue in time.
Steps adopt the fish-bellied type short plank.No steps.It can decrease the space span and fix the anti-skidding.Safety is highly assured.
Upper and down chain wheels are installed with a buffer device,which can efficiently reduce the vibration when running.
Customize the escalator for the architecture from the multiple handrails,multiple decorative cover,multiple lighting,etc.

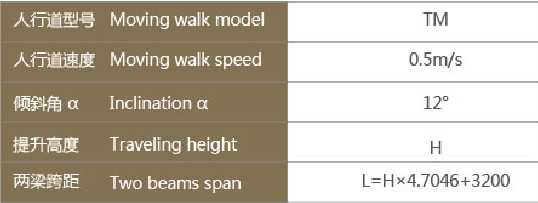

技术参数
Technical Parameters

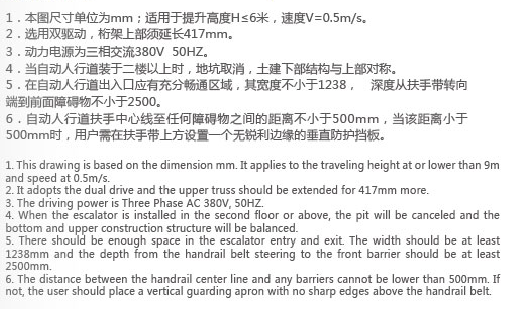

技术说明
Technical Description

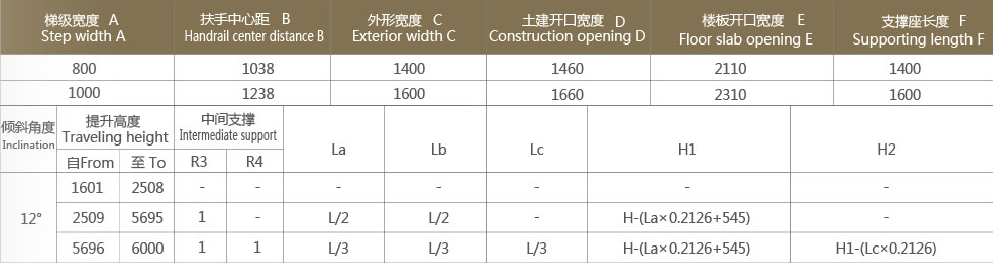

标准规格及尺寸
Standard specifications and dimensions
